The 33140 sodium ion cell provided by Asiar technology adopts the layered oxide natrium-ion battery technology, Using safe, long life, pollution-free, cost-effective natrium ion battery design, high life, more than 1500 cycles, DOD > 80%, suitable for electric tools, household energy storage, base stations, two-wheeled vehicles, low-speed vehicles, etc. This 33140 sodium ion cell has internal resistance ≤18mΩ, high energy conversion efficiency, and fast charging and discharging.
The positioning of Sunpower Energy is to align with the standard of Japan and South Korea’s world-class brands and export our products worldwide!
The cylindrical natrium-ion battery NNR33140-10ah has opened up a new electric tool and 3C market power era. It has begun to be promoted and applied in the foreign electric tool market. This 33140 natrium ion battery significantly demonstrates the performance advantages of fast charging (5C), low operating temperature (-30°C), long life cycles (over 1500 cycles), and high safety features (sodium-ion battery characteristics). After industrialization, the cost will also be significantly better than lithium-ion batteries.
In addition, cylindrical natrium-ion battery NNR33140-10ah will be widely used in new energy low-speed two-wheeled vehicles and small household energy storage fields. It is currently the best alternative power for lead-acid batteries and some lithium-ion batteries.
Item Name | 33140 Sodium Ion Battery |
model number | M10 |
color | orange |
shape | cylindrical |

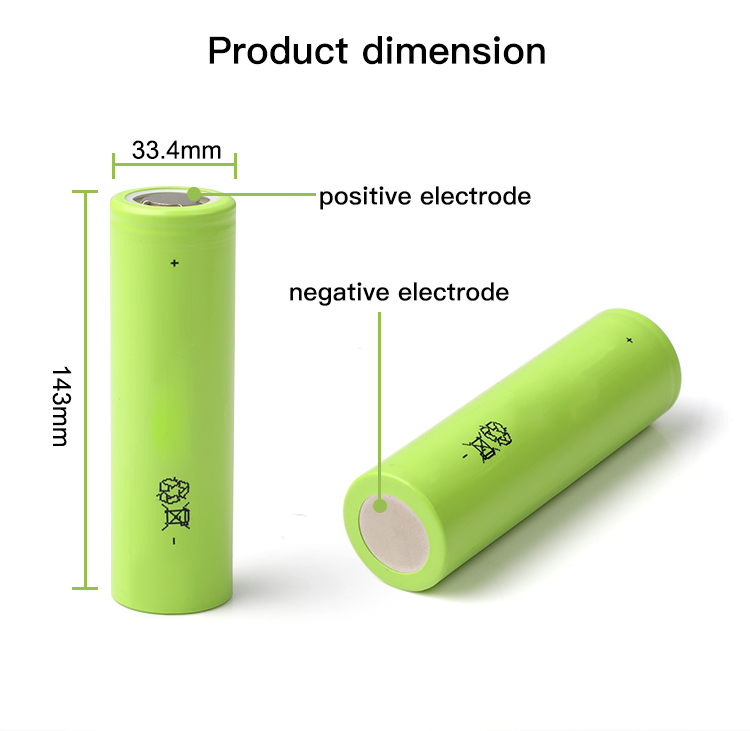

diameter | 33.4±0.3(mm) |
height | 143±0.5(mm) |
weight | 230g |
material | sodium ion |
characteristic | Na-ion |
capacity | 10Ah |
rated voltage | 3.0V |

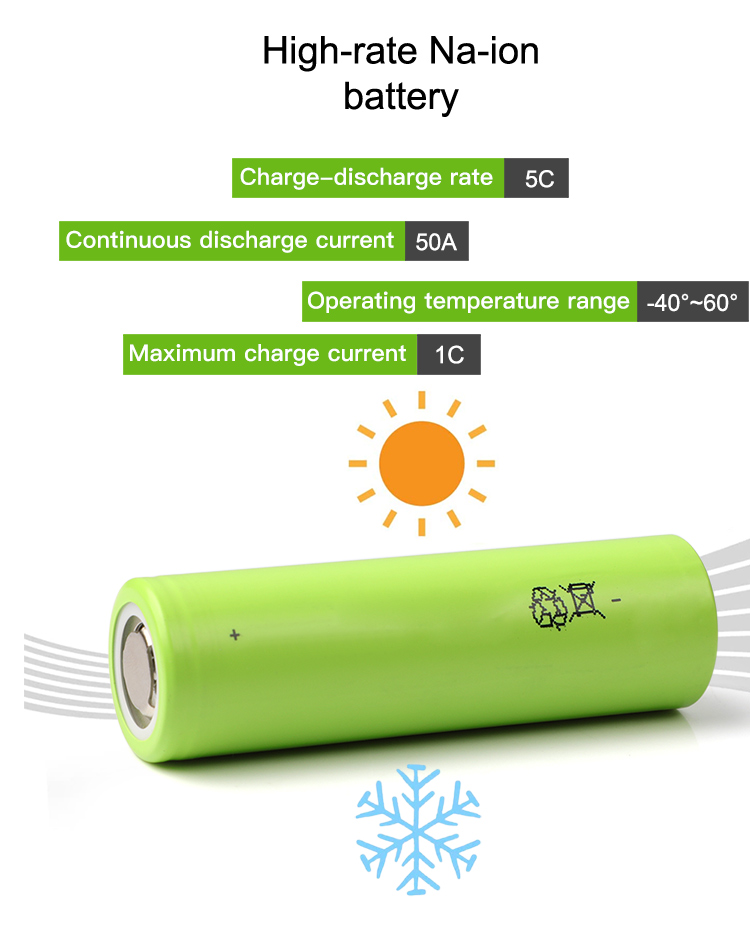

charge-discharge rate | 5C |
typical resistance value | 5mΩ |
discharge cut-off voltage | 2.0V |
charging cut-off voltage | 4.0V |
rated charging current | 0.5C |
maximum charge current | 1C |
continuous discharge current | 50A |
operating temperature range | -40℃~60℃ |
rechargeable | yes |
33140 Na-ion Battery M10 Main Applications | ||||
Electric propelling applications | engine starting battery; Slow Speed Car; intellectual robots; electric bicycle/motorcycle/scooter; golf trolley/carts/ sightseeing car; power tools. | |||
Energy storage | solar and wind power system; city on/off grid; community and family, RV Caravan, Marine yachts. | |||
Back-up system and UPS | telecom base, CATV-system, computer server center, medical instrument, military equipment. | |||
Other applications | security and electronics; mobile POS, mining light/torch/LED light/emergency light. | |||
The cutting-edge 33140 natrium ion battery can be applied for various scenarios.
